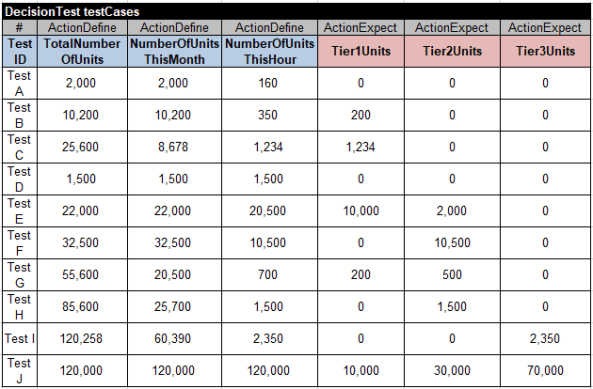

There are already 3 solutions to DMCommunity May-2020 Challenge. I especially like how Carol-Ann Berlioz created her solution using a test-driven approach when test cases prompt her which rules should be added. So, I’ve tried to reproduce her solution but instead of a product specific GUI I decided to use OpenRules decision tables defined in Excel. So, here are our test-cases with input data and expected results:

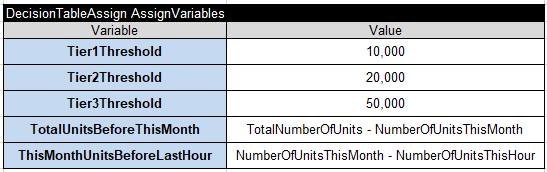

The following table defines several more decision variables:

And here are the rules defined exactly in the same way Carole-Ann did:

Please note that (while Carole-Ann didn’t stress it) the execution order of these rules is very important. So, I created a table of the type “Decision” that specifies this order:

To complete the decision model, I defined this glossary that includes all decision variables used by the above rules:

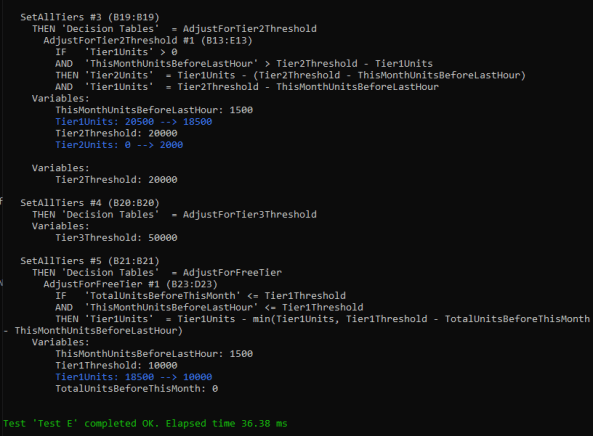

Then I called the default “test.bat” to execute this decision model and received the following results (shown only for the most complex Test E):

Blue color highlights the decision variables that were actually changed showing their values before and after rules execution.

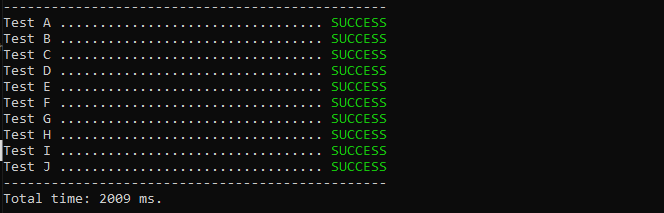

Here is a summary for all test cases:

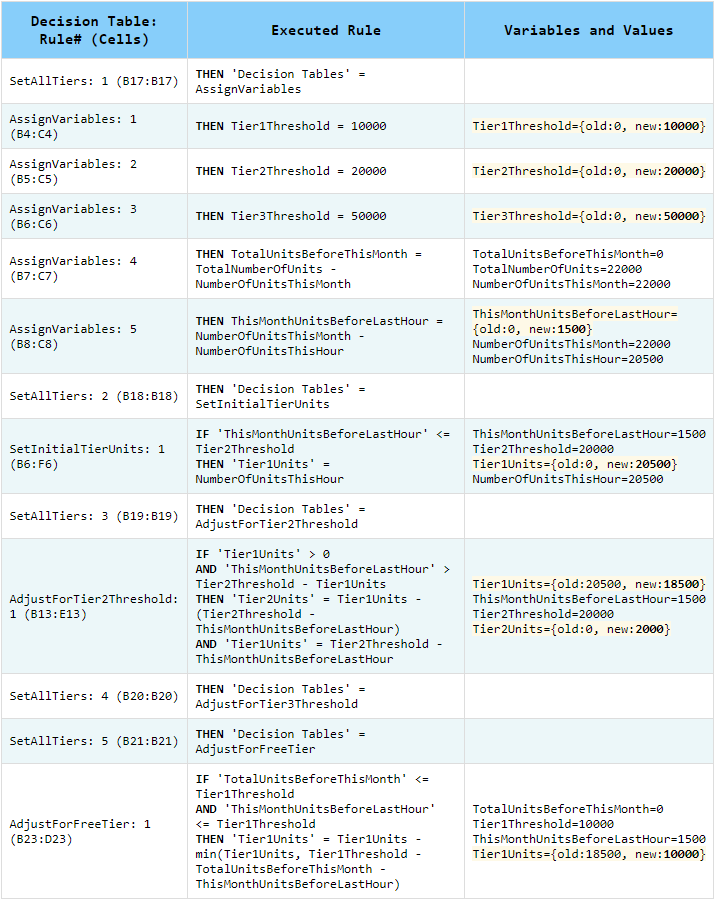

The same results can be seen in a more friendly html report:

To deploy this decision model as AWS Lambda function and make it available from any JSON client (e.g. POSTMAN), I simply double-clicked on “deployLambda.bat” with 0 configuration efforts.
